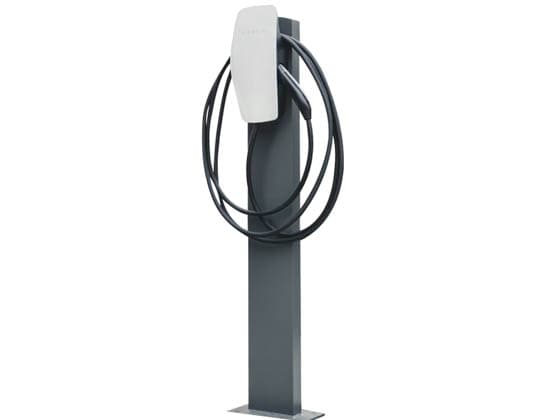

Gen 3 Wall Connector Tester

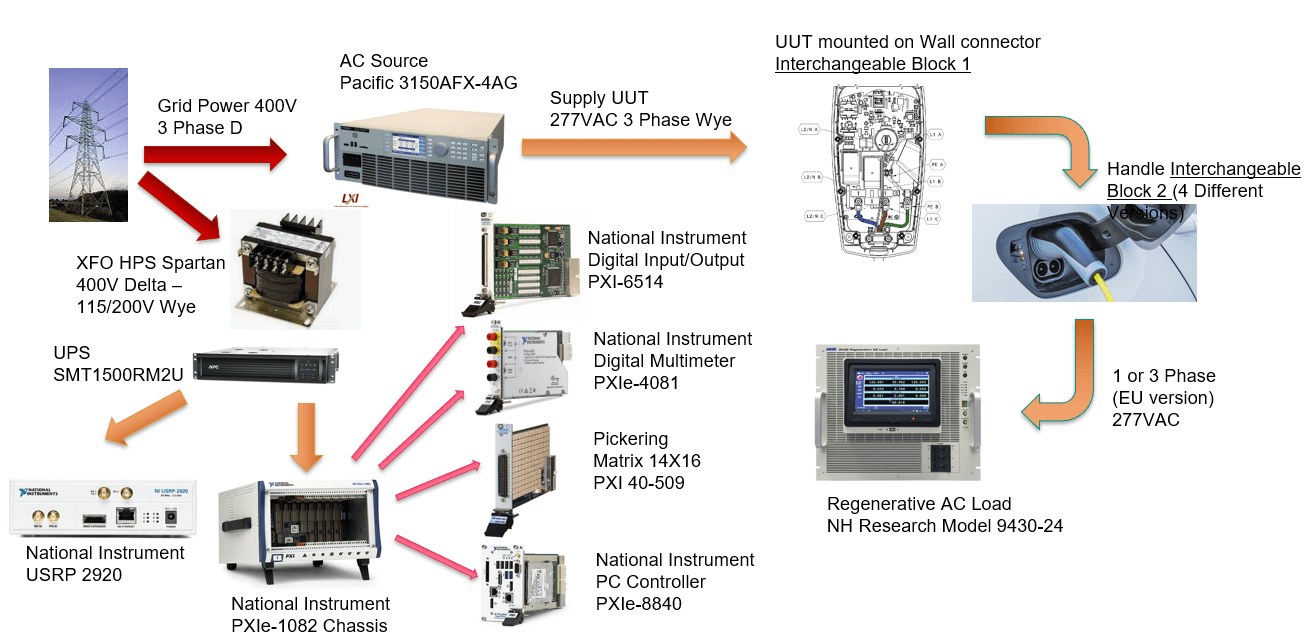

Architected a comprehensive test system for Tesla's Gen 3 Wall Connector — a multi-faceted system ensuring safety, functionality, and regulatory compliance before market release.

Played a pivotal role in the Gen 3 Wall Connector design and testing process. Identified critical flaws before the China market release.

Worked extensively with SWC/SPI/CAN communication protocols. Collaborated with Firmware, Design, Production, and Electrical teams.

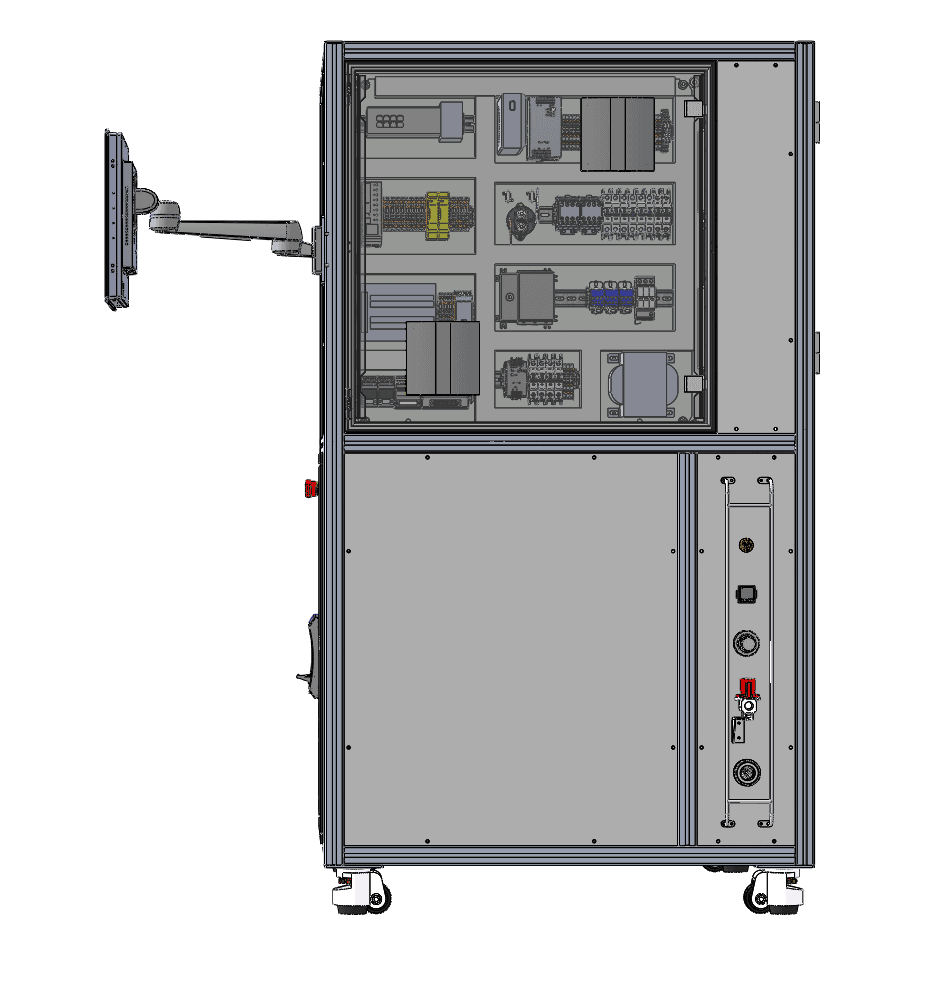

Developed a proprietary automated pneumatic test system representing a $140K investment. Designed DFM-optimized custom parts.

Key test features include: Resistance Test, Hipot Test, Insulation Resistance, Functional Test, Zero Current Burn-In, Leak Test, UHF Transmission, WiFi & NFC, and Energy Metering Calibration.
